A quick-reference deck of the core algorithmic patterns behind most coding problems — recognize the pattern, then reach for the right algorithm. Minimal words: the pseudocode is the reference and one diagram per algorithm shows the mechanic.
Student edition · understand, apply, verify
Choose an algorithm from input constraints, then check its boundary cases and cost.
What you should be able to do: Implement binary search, window sums, graph traversal, and shortest paths with explicit input assumptions.
Assumes basic programming. Define input and observable-behavior contracts before applying an algorithm or design heuristic. Pseudocode/fragments need surrounding context; the downloadable lab is complete and tested.
Most interview and day-to-day algorithm problems are variations on a small set of reusable patterns. Learn to recognize the pattern from the shape of the problem — sorted input, a contiguous range, a graph, overlapping subproblems — and the algorithm usually follows. This page groups the essential algorithms under the pattern each one exemplifies: each pattern gets a short intro on when it applies, then its algorithms as compact pseudocode with a schematic diagram.
Read these definitions first, or use the linked terms as you go. The examples and limitations are local to this guide; companion pages are optional.
A precondition states required inputs/state before an operation. A postcondition states the result promised when those requirements hold and execution terminates normally. Together they make requirements testable.
Example. For sum_first(b,n), require integer 0≤n≤len(b) and numeric elements; promise the sum of b[0:n].
Boundary. State exceptions, mutation, numeric domains, and empty cases. A mathematical array range does not automatically validate a runtime input.
A predicate true after initialization and after each iteration. Together with the false exit guard it establishes the required result.
Example. While summing, preserve 0≤i≤n and s=sum(b[0:i]); add b[i] then advance i.
Boundary. An invariant alone does not prove termination. Validate array/domain bounds and establish the invariant before iteration.
A variant strictly decreases each iteration in a well-founded order. A natural-number variant cannot decrease forever while remaining nonnegative.
Example. An array scan uses n−i; repeated subtraction division uses remaining dividend.
Boundary. A positive real can halve forever. Use discrete domains or another well-founded order; nested loops need a correct combined or lexicographic bound.
Big-O describes growth with input size under a cost model. Worst-case, expected, amortized, and output-sensitive bounds are distinct promises.
Example. Binary search is O(log n) comparisons on sorted random-access input; printing every subset needs exponential output work.
Boundary. Expected hash-table O(1) is not worst-case O(1). Include output size, recursion space, input assumptions, integer costs, and library operations.
A recursive function reduces a problem to smaller instances; its proof has a base case and an inductive step. Recursive arguments decrease under a well-founded measure.
Example. factorial(0)=1; factorial(n)=n×factorial(n−1) for nonnegative integer n.
Boundary. Mathematical termination does not remove runtime stack limits. An iterative form avoids recursion-depth failures.
Use two indices that walk a sequence — usually from opposite ends, sometimes at different speeds — to replace a nested-loop scan with a single linear pass. The core idea is that each step provably discards one candidate, so the whole sweep is O(n) time and O(1) space. Works best on sorted or symmetric data.

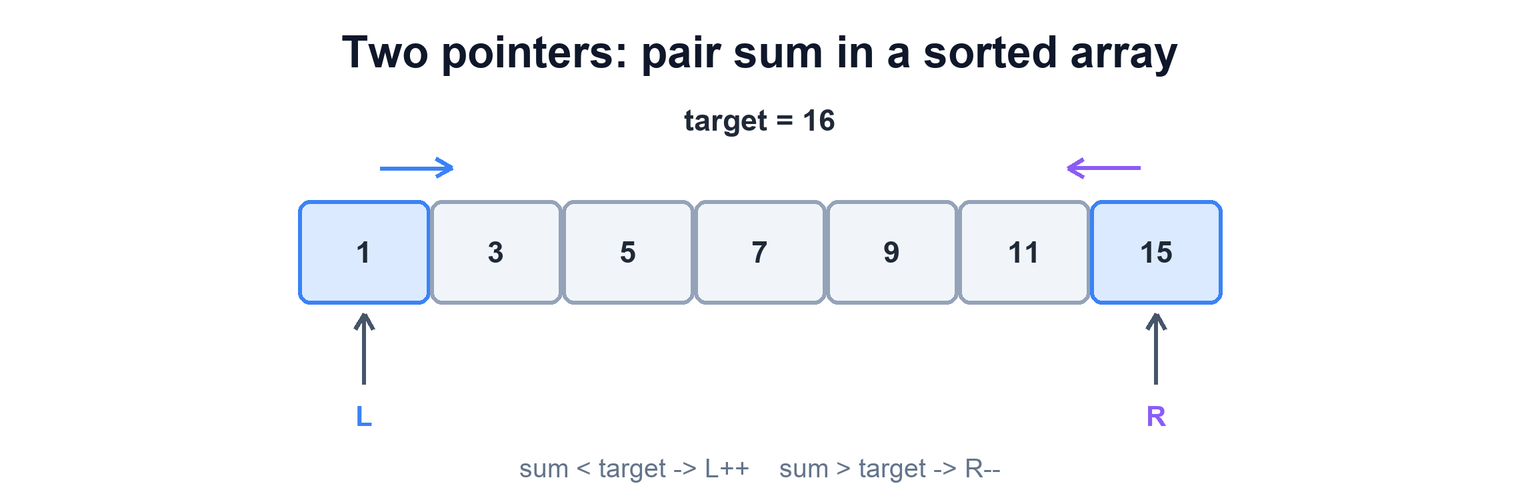

On sorted input, increasing the low pointer after a too-small sum discards that low element with all current partners; decreasing the high pointer after a too-large sum discards that high element. This monotonic argument justifies the search.
function pair_sum(arr, target): # arr is sorted ascending
lo = 0
hi = length(arr) - 1
while lo < hi:
sum = arr[lo] + arr[hi]
if sum == target: return (lo, hi) # found it
if sum < target: lo = lo + 1 # need a bigger value
else: hi = hi - 1 # need a smaller value
return NONE
Swap the outermost pair, then step both pointers inward; the same walk either reverses in place or verifies a palindrome by comparing instead of swapping.
function reverse(arr):
lo = 0
hi = length(arr) - 1
while lo < hi:
swap(arr[lo], arr[hi]) # or: compare for palindrome
lo = lo + 1
hi = hi - 1
return arr
Use a moving window over a contiguous run of a sequence to answer questions about subarrays or substrings without recomputing from scratch. The core idea is to add the entering element and remove the leaving element as the window moves, keeping each step O(1) for an overall O(n) pass. The window is either a fixed size or grows and shrinks on a condition.

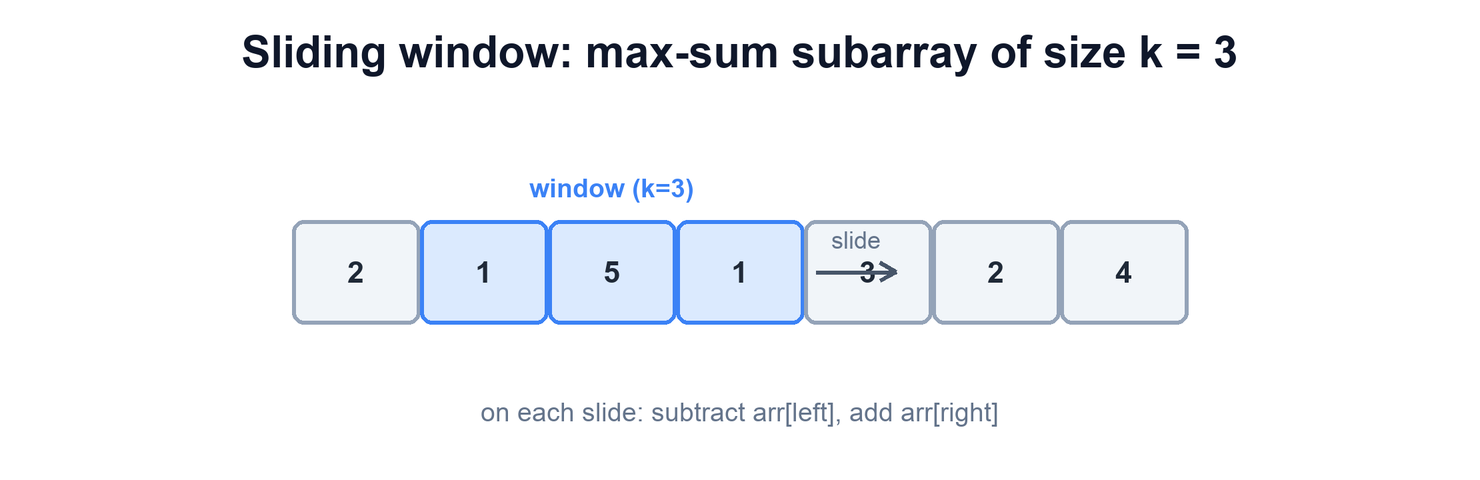

Keep a running sum of exactly k elements; on each slide subtract the element that leaves and add the one that enters, so the sum updates in constant time.
function max_sum_k(arr, k):
window = sum(arr[0 .. k-1]) # first window
best = window
for right in k .. length(arr)-1:
window = window + arr[right] - arr[right - k] # add new, drop old
best = max(best, window)
return best
Grow the window by advancing the right edge; when a duplicate appears, shrink from the left until the window is valid again, tracking the best length seen.
function longest_unique(s):
seen = empty set
left = 0
best = 0
for right in 0 .. length(s)-1:
while s[right] in seen: # duplicate -> shrink
remove s[left] from seen
left = left + 1
add s[right] to seen # extend window
best = max(best, right - left + 1)
return best
Use two pointers advancing at different speeds over a linked structure to detect cycles or find a midpoint without extra memory. The core idea is that if a loop exists the fast pointer laps the slow one and they collide; otherwise fast simply runs off the end. Time is O(n) with O(1) space.

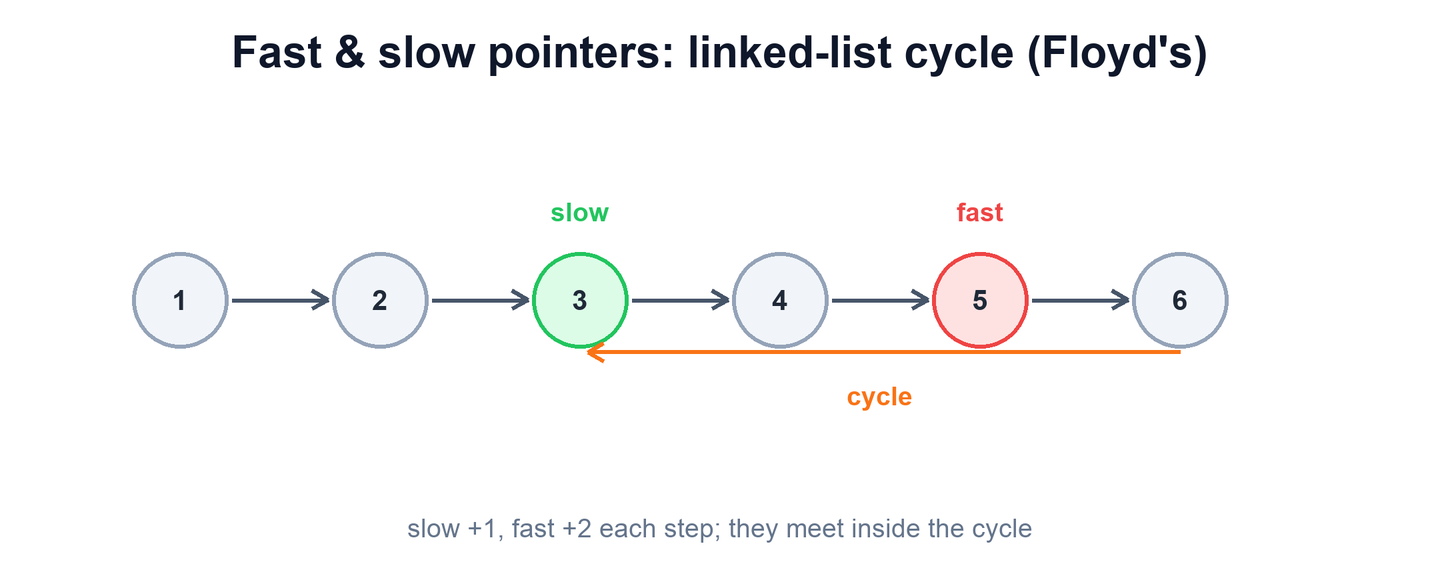

Advance slow by one node and fast by two; if they ever meet the list has a cycle, and if fast reaches the end it does not.
function has_cycle(head):
slow = head
fast = head
while fast != NULL and fast.next != NULL:
slow = slow.next # +1 step
fast = fast.next.next # +2 steps
if slow == fast: # pointers collided
return TRUE
return FALSE # fast ran off the end
Use repeated halving to locate a value in a sorted range, discarding half the candidates at every comparison. The core idea is that an ordered invariant lets you rule out an entire side by looking at one midpoint, giving O(log n) time. It generalizes to any monotonic predicate, not just literal arrays.

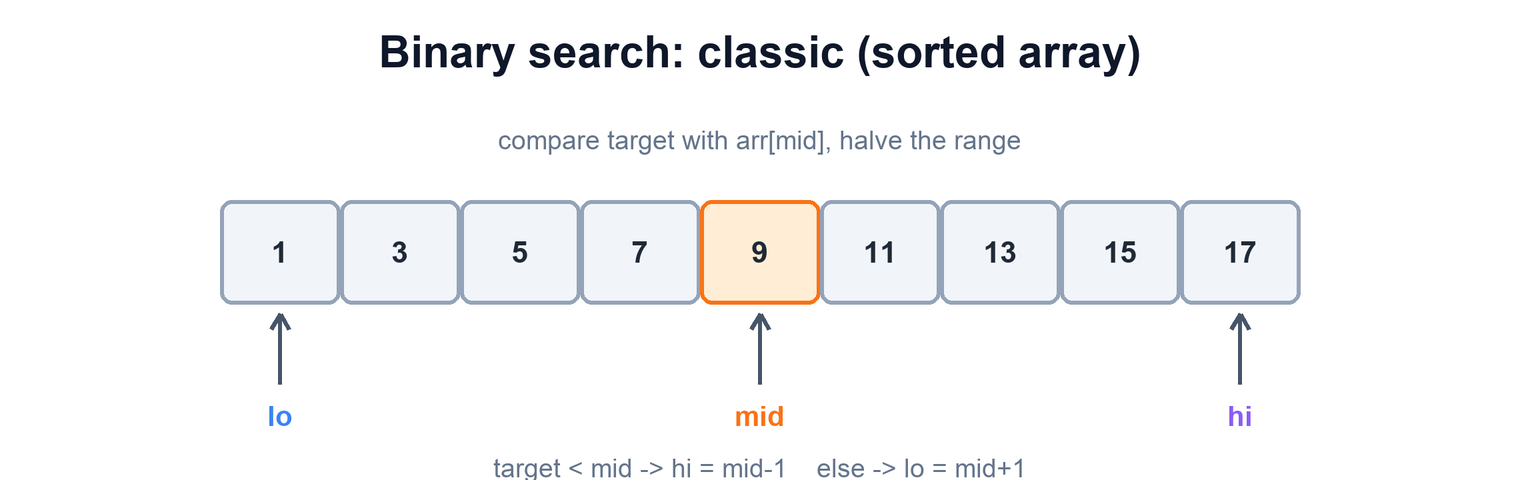

Track a lo/hi range, probe the midpoint, and collapse toward the half that can still contain the target.
function binary_search(arr, target): # arr sorted ascending
lo = 0
hi = length(arr) - 1
while lo <= hi:
mid = lo + (hi - lo) / 2 # avoids overflow
if arr[mid] == target: return mid
if target < arr[mid]: hi = mid - 1 # search left half
else: lo = mid + 1 # search right half
return NOT_FOUND

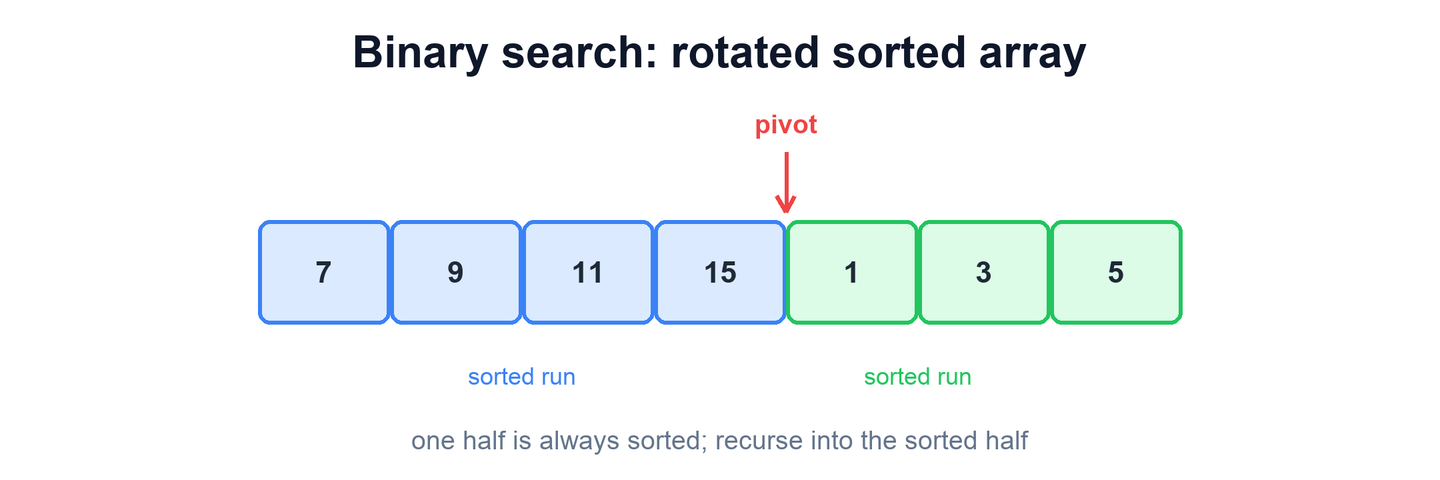

A rotation leaves one half still sorted at every step; decide which half is ordered, and search there only if the target falls inside its range.
function search_rotated(arr, target):
lo = 0
hi = length(arr) - 1
while lo <= hi:
mid = lo + (hi - lo) / 2
if arr[mid] == target: return mid
if arr[lo] <= arr[mid]: # left half is sorted
if arr[lo] <= target < arr[mid]: hi = mid - 1
else: lo = mid + 1
else: # right half is sorted
if arr[mid] < target <= arr[hi]: lo = mid + 1
else: hi = mid - 1
return NOT_FOUND
Use DFS to explore a tree or graph by going as deep as possible along each branch before backtracking, via recursion or an explicit stack. The core idea is to fully finish one subtree or region before moving to the next, visiting every node and edge once in O(V + E). It is the natural fit for traversal order, connectivity, and path enumeration.

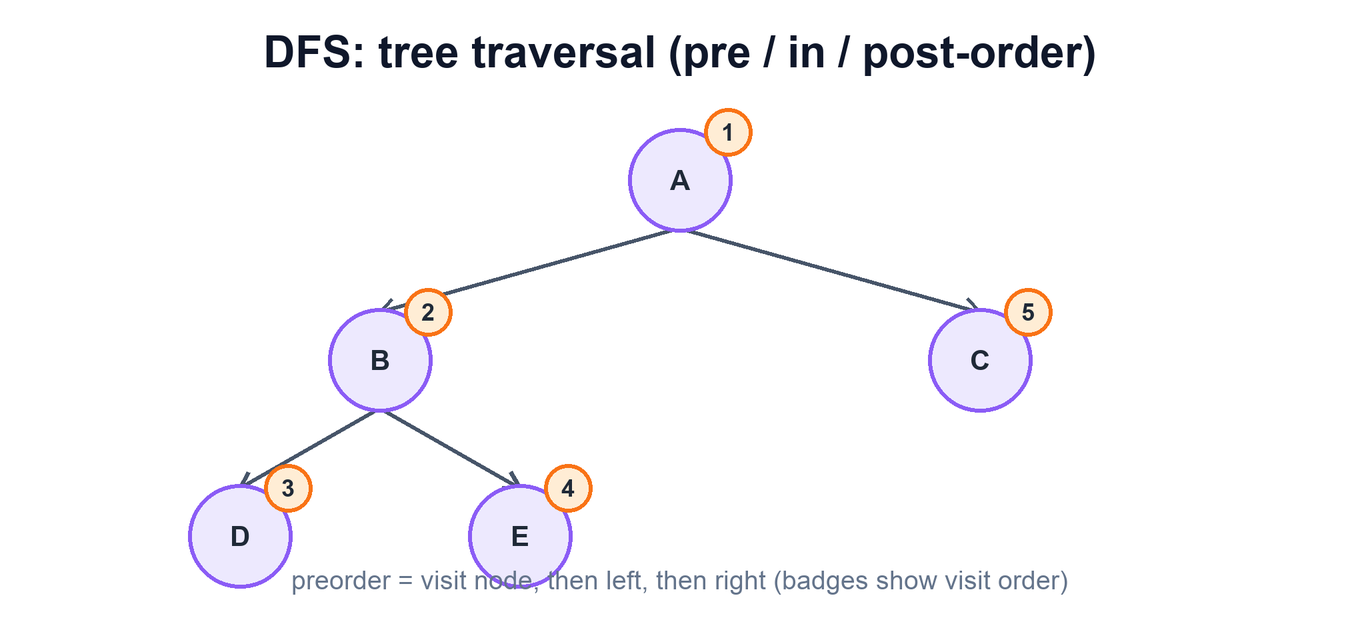

Recurse into the left and right children; the position of the visit relative to those two recursive calls chooses pre-, in-, or post-order.
function dfs(node):
if node == NULL: return
visit(node) # PRE-order: before children
dfs(node.left)
# visit(node) # IN-order: between children
dfs(node.right)
# visit(node) # POST-order: after children

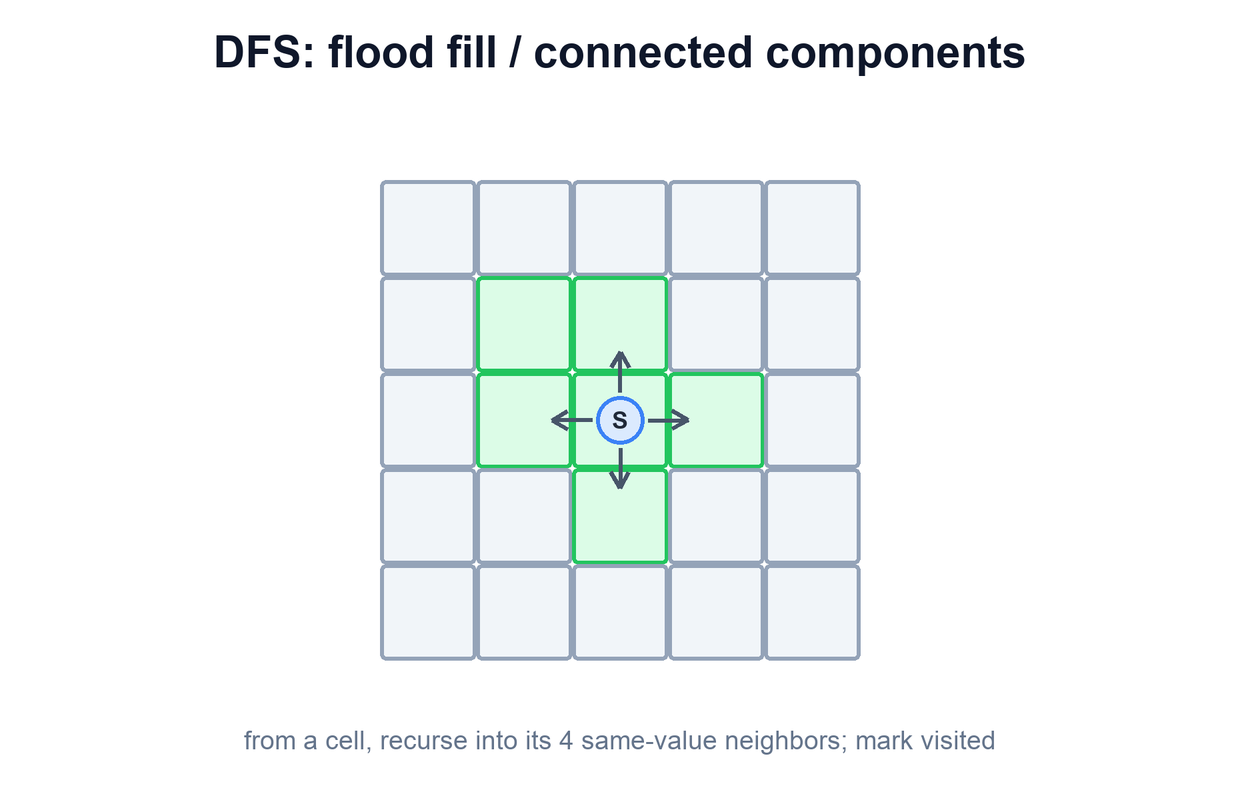

From a starting cell, recurse into each same-valued neighbor, marking cells visited so the search fills one connected region without revisiting.
function flood(grid, r, c, target, seen):
if (r, c) out of bounds: return
if (r, c) in seen or grid[r][c] != target: return
add (r, c) to seen # mark visited
for (dr, dc) in [(-1,0),(1,0),(0,-1),(0,1)]:
flood(grid, r + dr, c + dc, target, seen) # 4 neighbors
Use BFS to explore a graph in expanding rings, visiting all nodes at distance k before any at distance k+1, driven by a queue. The core idea is that this level-order sweep reaches every node by its fewest edges, so the first time a node is seen is its shortest hop count. It runs in O(V + E).

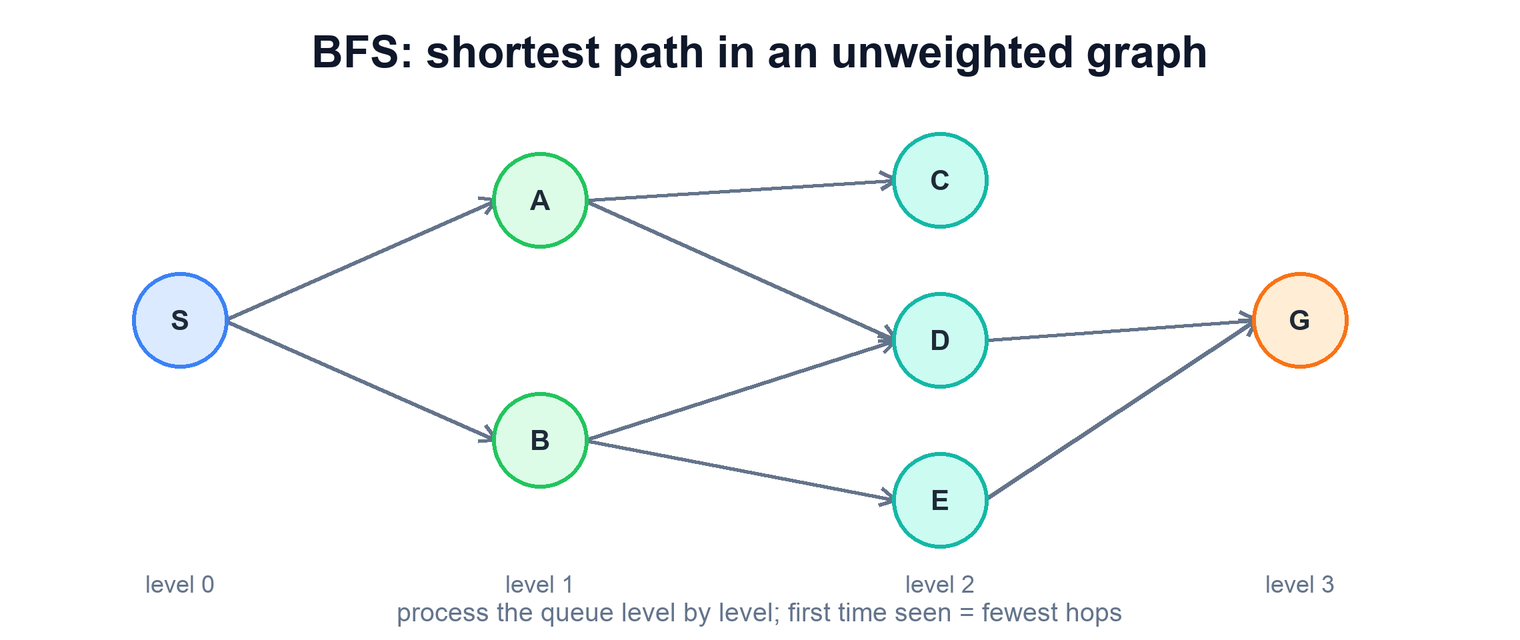

Seed a queue with the source, then repeatedly dequeue a node and enqueue its unseen neighbors; distances fill in layer by layer.
function bfs(source):
queue = [source]
dist = { source: 0 } # seen + hop count
while queue not empty:
node = dequeue(queue)
for nbr in neighbors(node):
if nbr not in dist: # first sighting = shortest
dist[nbr] = dist[node] + 1
enqueue(queue, nbr)
return dist
Use backtracking to build candidate solutions one choice at a time, abandoning a branch the moment it cannot lead to a valid answer. The core idea is a depth-first walk of the decision tree that undoes each choice on the way back up, pruning dead branches early. Worst case is exponential, but pruning makes many problems tractable.

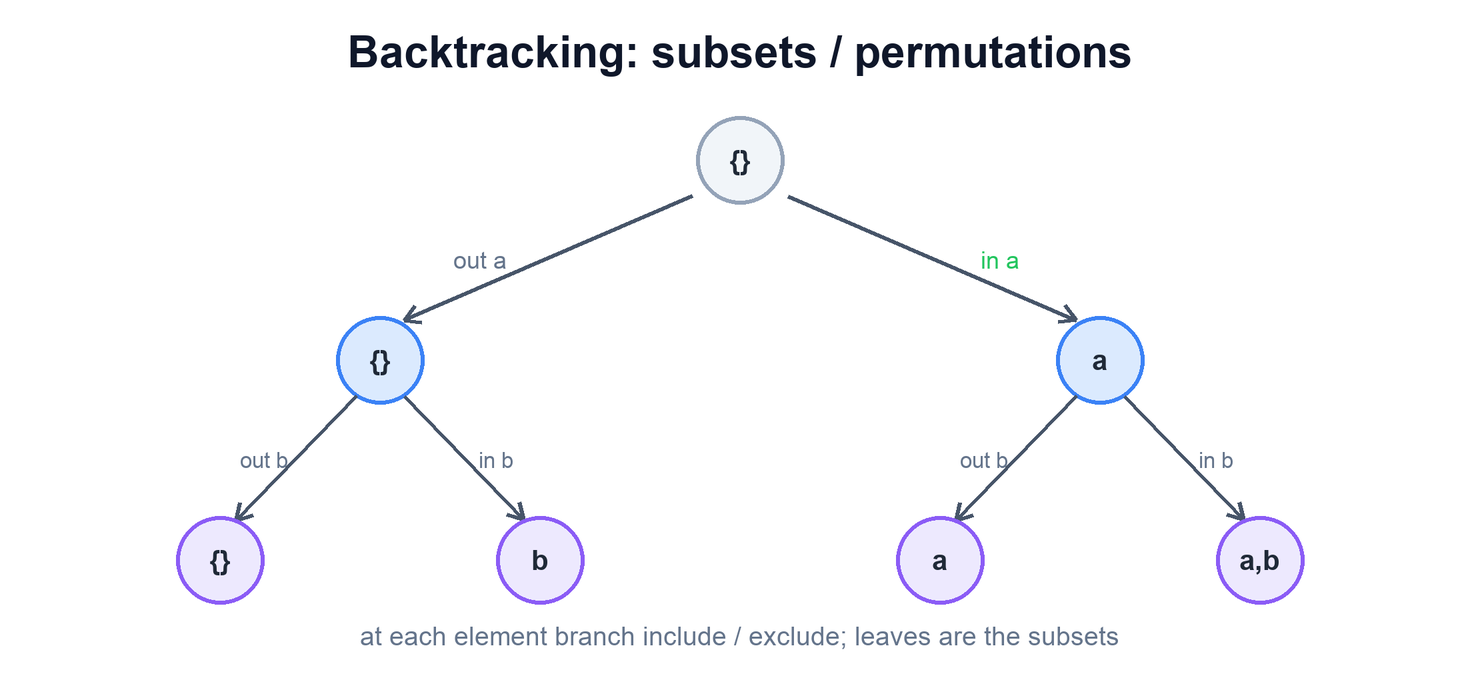

At each element decide to include it or not, recurse, then undo the choice; the leaves of that binary decision tree enumerate every combination.
function subsets(items, index, current, results):
if index == length(items):
results.append(copy(current)) # a complete subset
return
subsets(items, index + 1, current, results) # exclude item
current.append(items[index]) # choose
subsets(items, index + 1, current, results) # include item
current.pop() # undo (backtrack)

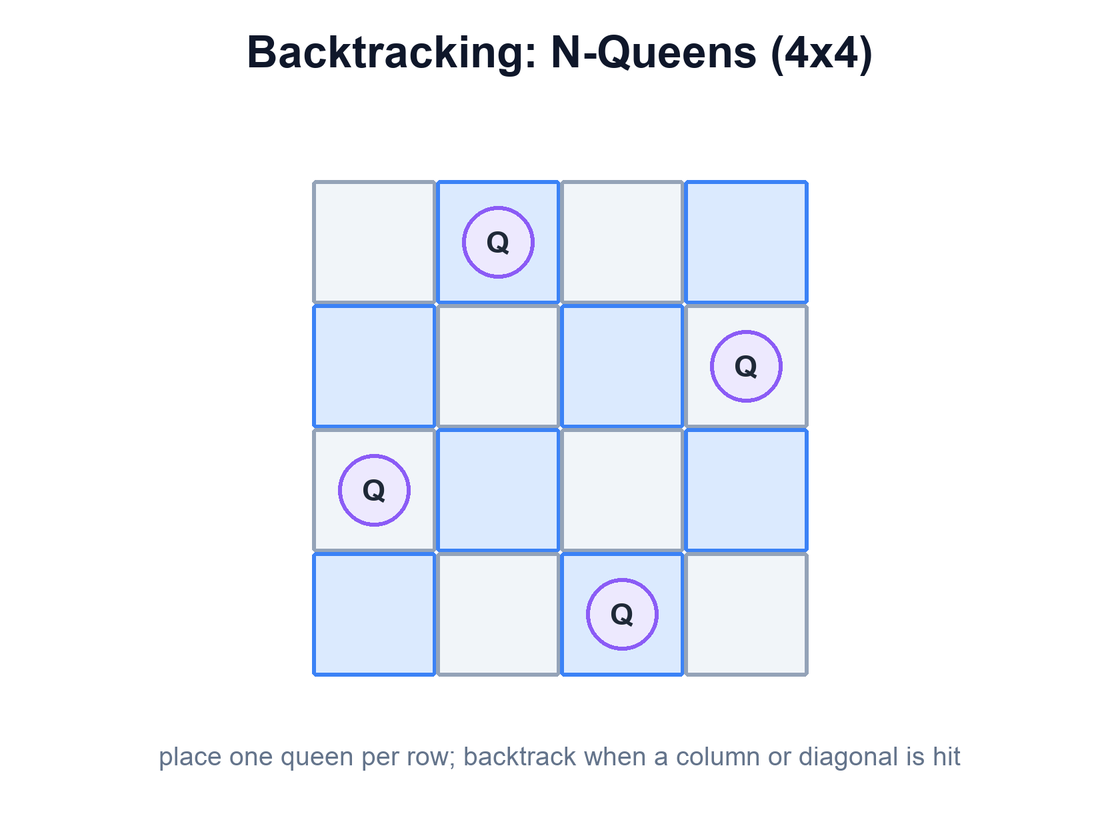

Place one queen per row, trying each column; recurse to the next row only from safe squares and backtrack when a placement is attacked.
function solve(row, n, board):
if row == n:
record(board) # all queens placed
return
for col in 0 .. n-1:
if is_safe(board, row, col): # no column/diagonal attack
place queen at (row, col)
solve(row + 1, n, board)
remove queen at (row, col) # backtrack
Dynamic programming solves a problem by breaking it into overlapping subproblems, solving each once, and reusing the answer — either top-down with a memo or bottom-up with a table.

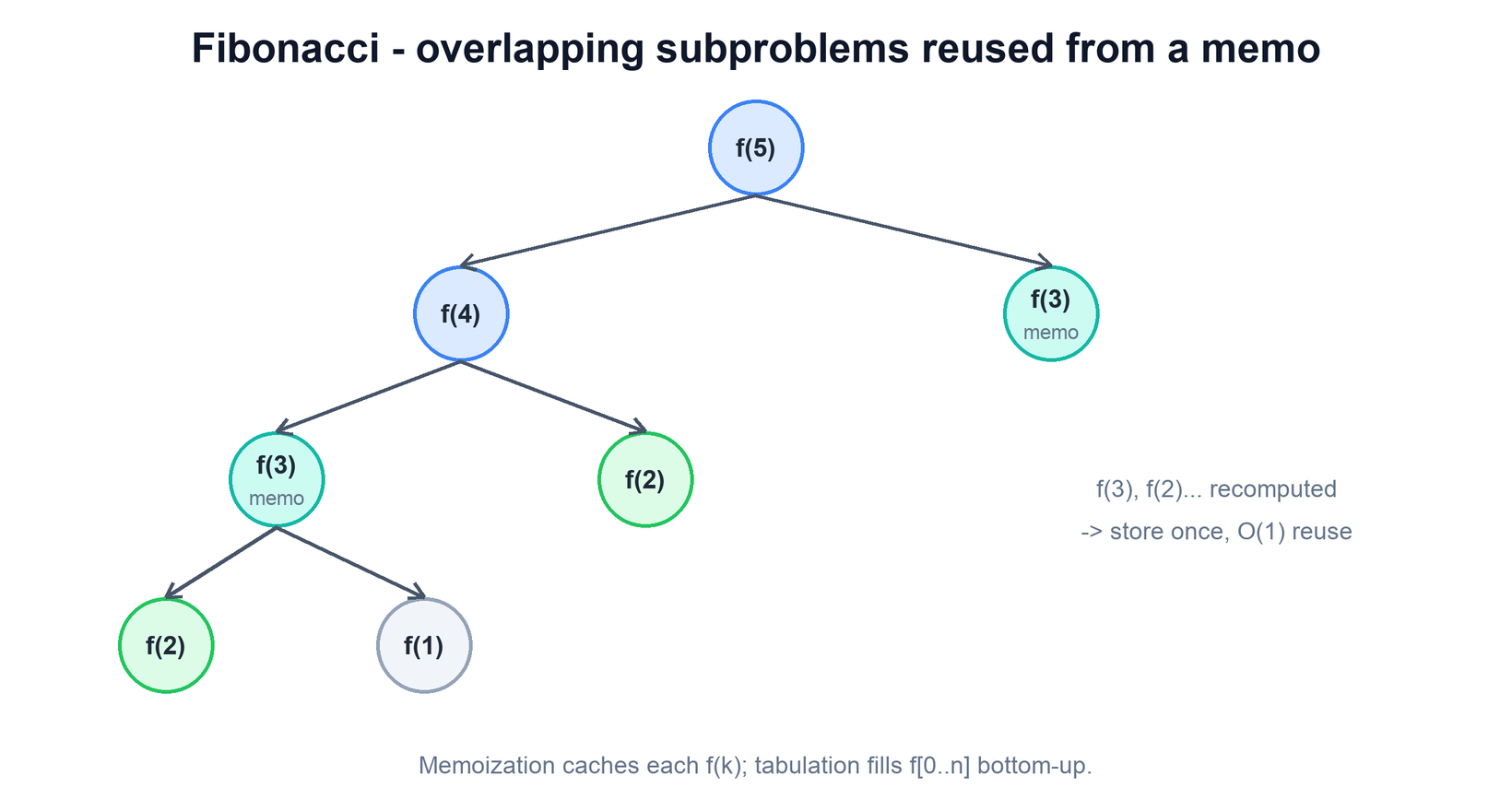

The naive recursion recomputes the same subproblems exponentially; caching each result (memoization) or filling an array bottom-up (tabulation) makes it linear.
# top-down: memoize the recursion
function fib_memo(n, memo):
if n ≤ 1: return n
if n in memo: return memo[n] # reuse cached subproblem
memo[n] = fib_memo(n-1, memo) + fib_memo(n-2, memo)
return memo[n]
# bottom-up: fill a table
function fib_tab(n):
dp = [0, 1]
for i from 2 to n:
dp[i] = dp[i-1] + dp[i-2] # O(n) time, O(1) space if rolled
return dp[n]
Choose a subset of items to maximize value within a weight capacity; each cell of the DP grid is the best value for the first i items at capacity w.
function knapsack(weights, values, capacity):
n = len(weights)
dp = grid[n+1][capacity+1] filled with 0
for i from 1 to n:
for w from 0 to capacity:
dp[i][w] = dp[i-1][w] # skip item i
if weights[i-1] ≤ w:
take = dp[i-1][w - weights[i-1]] + values[i-1]
dp[i][w] = max(dp[i][w], take) # take item i
return dp[n][capacity]
A greedy algorithm builds a solution by repeatedly taking the choice that looks best right now; it is correct only when a local optimum provably leads to a global one.

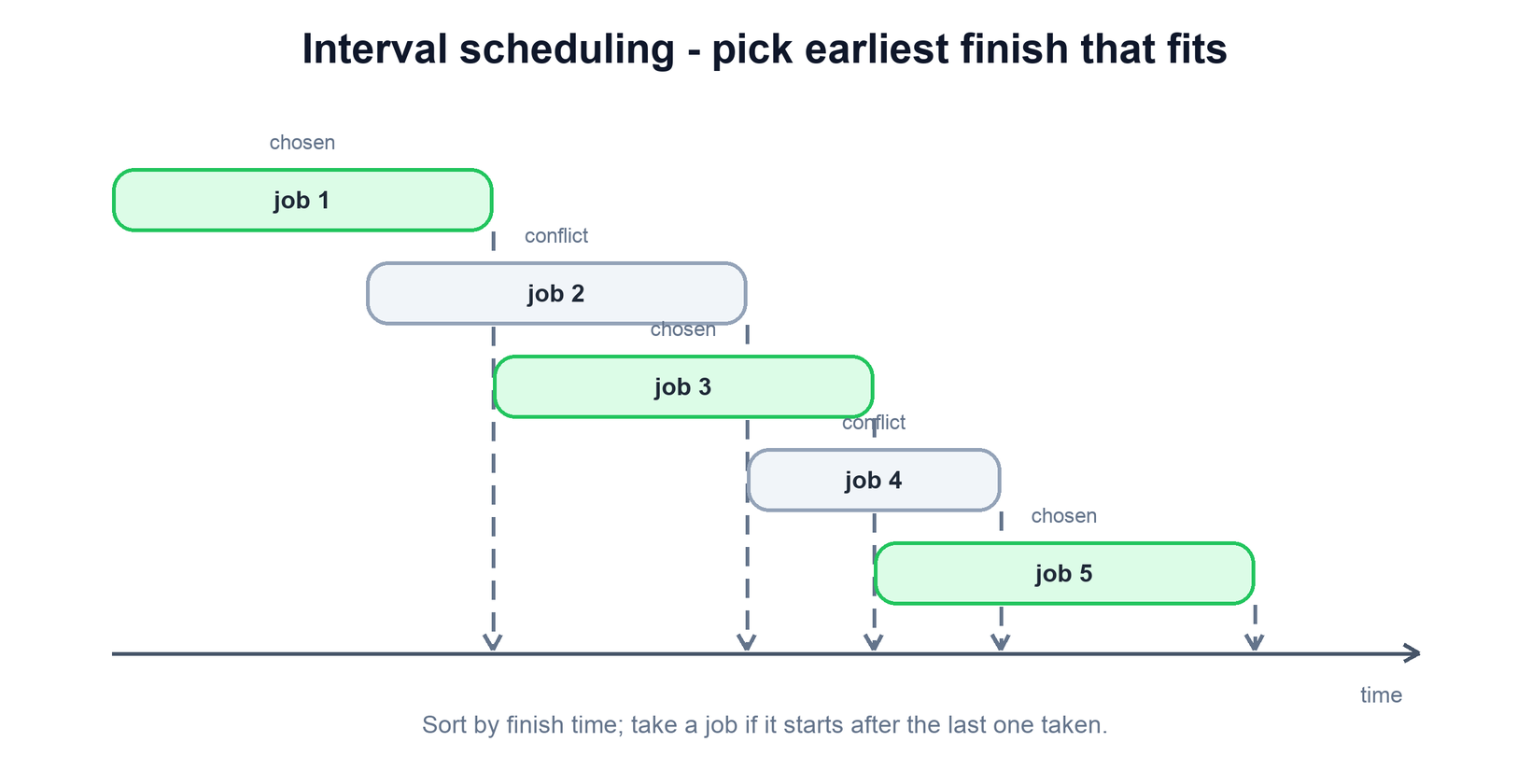

To fit the most non-overlapping intervals, sort by finish time and keep each interval that starts after the last one taken.
function select_intervals(jobs):
sort jobs by finish time ascending
chosen = []
last_end = -infinity
for job in jobs:
if job.start ≥ last_end: # no overlap with last taken
chosen.append(job)
last_end = job.finish
return chosen
Divide and conquer splits a problem into independent subproblems, solves each recursively, and combines the results — the split and combine steps define the algorithm.

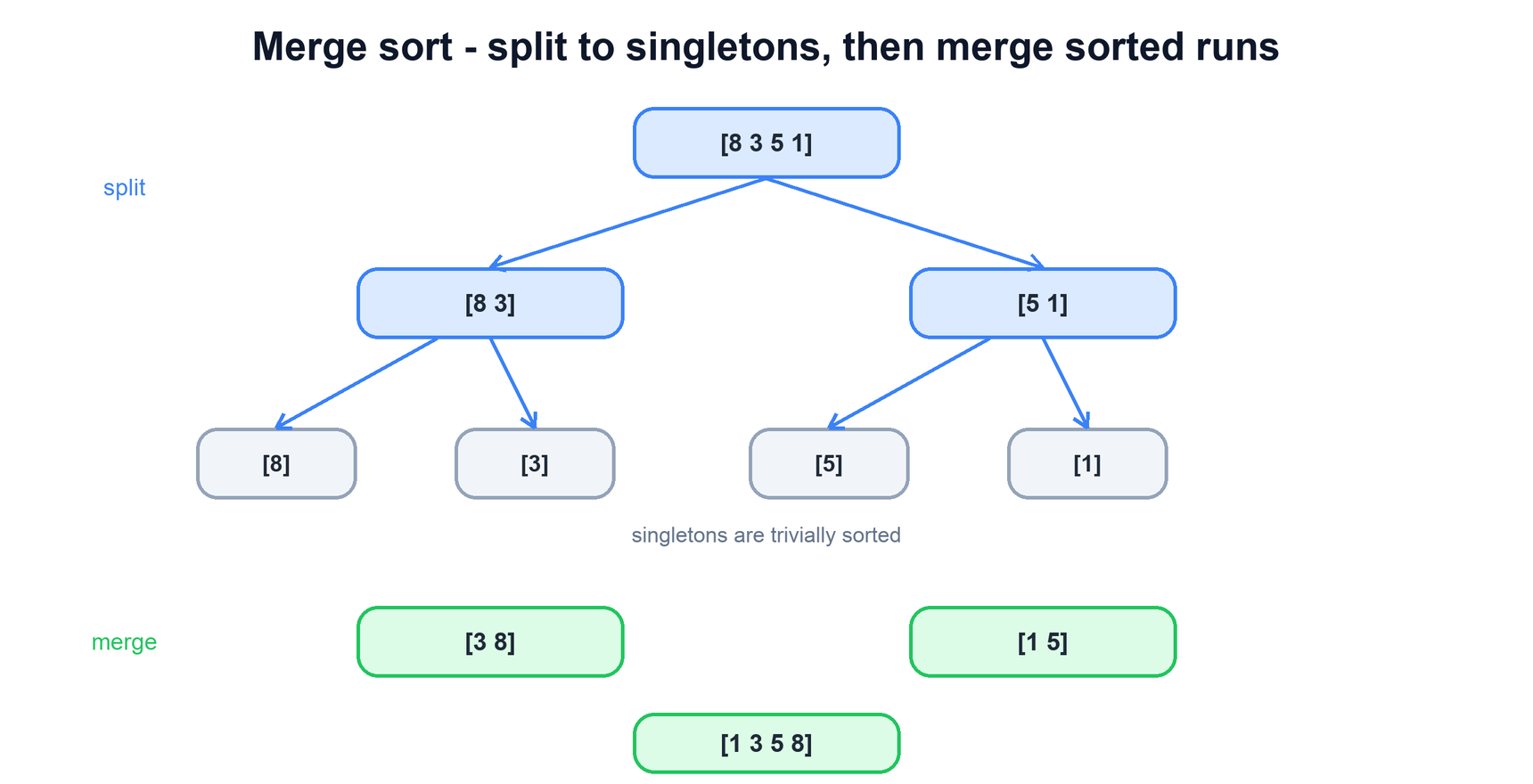

Split the array to single elements (trivially sorted), then merge sorted halves back together in linear time per level.
function merge_sort(a):
if len(a) ≤ 1: return a
mid = len(a) / 2
left = merge_sort(a[:mid])
right = merge_sort(a[mid:])
return merge(left, right) # combine two sorted runs
function merge(left, right):
out = []
while left and right:
if left[0] ≤ right[0]: out.append(left.pop_front())
else: out.append(right.pop_front())
return out + left + right # append leftovers

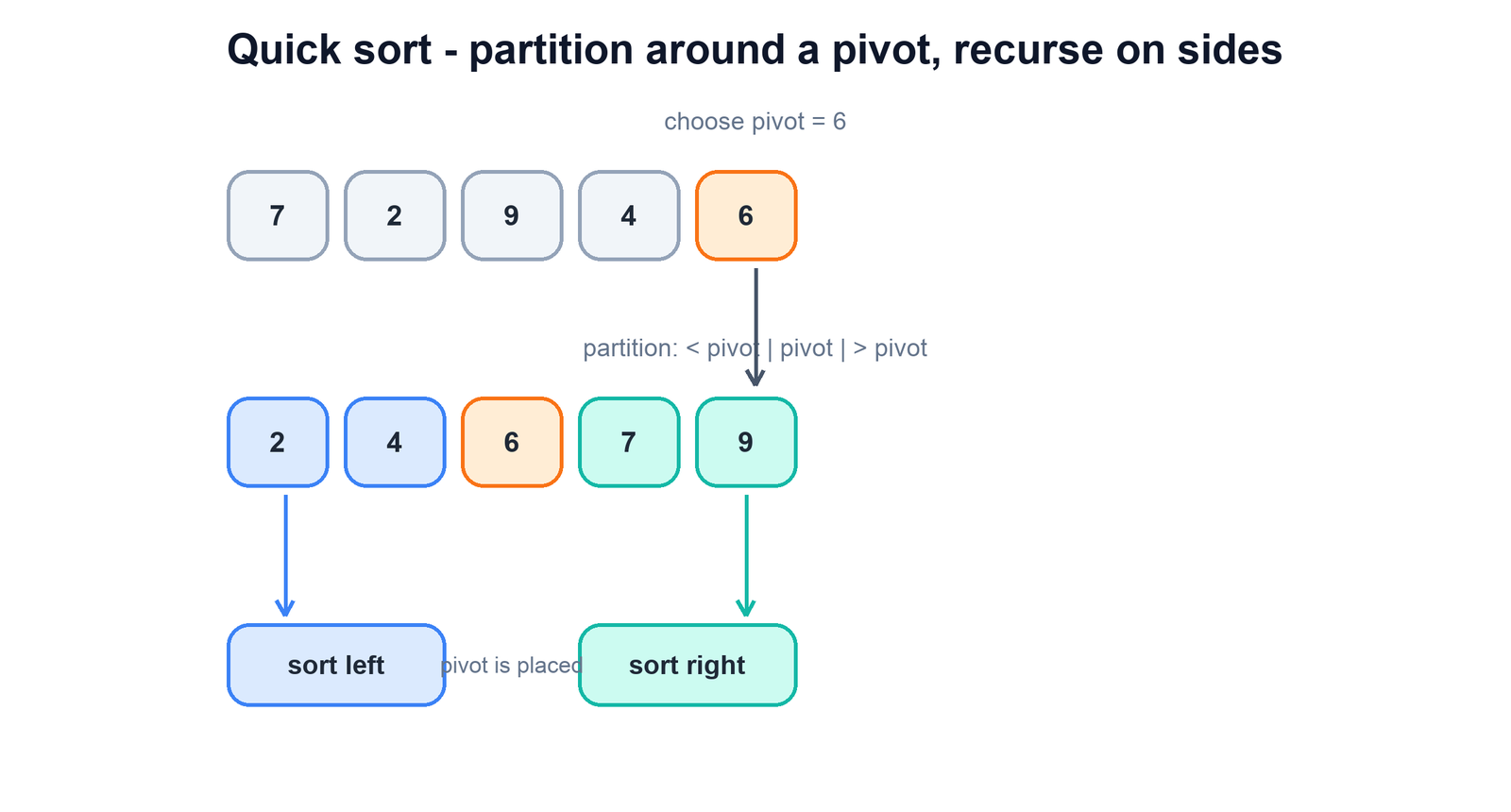

Pick a pivot, partition the array into elements smaller and larger than it, then recurse on each side; the pivot lands in its final place.
function quick_sort(a, lo, hi):
if lo ≥ hi: return
p = partition(a, lo, hi) # pivot settles at index p
quick_sort(a, lo, p-1)
quick_sort(a, p+1, hi)
function partition(a, lo, hi):
pivot = a[hi]
i = lo
for j from lo to hi-1:
if a[j] < pivot:
swap(a[i], a[j]); i = i + 1 # smaller items to the left
swap(a[i], a[hi])
return i
A binary heap gives O(log n) access to the smallest or largest element, which makes it the natural structure for streaming top-K and running-median style problems.

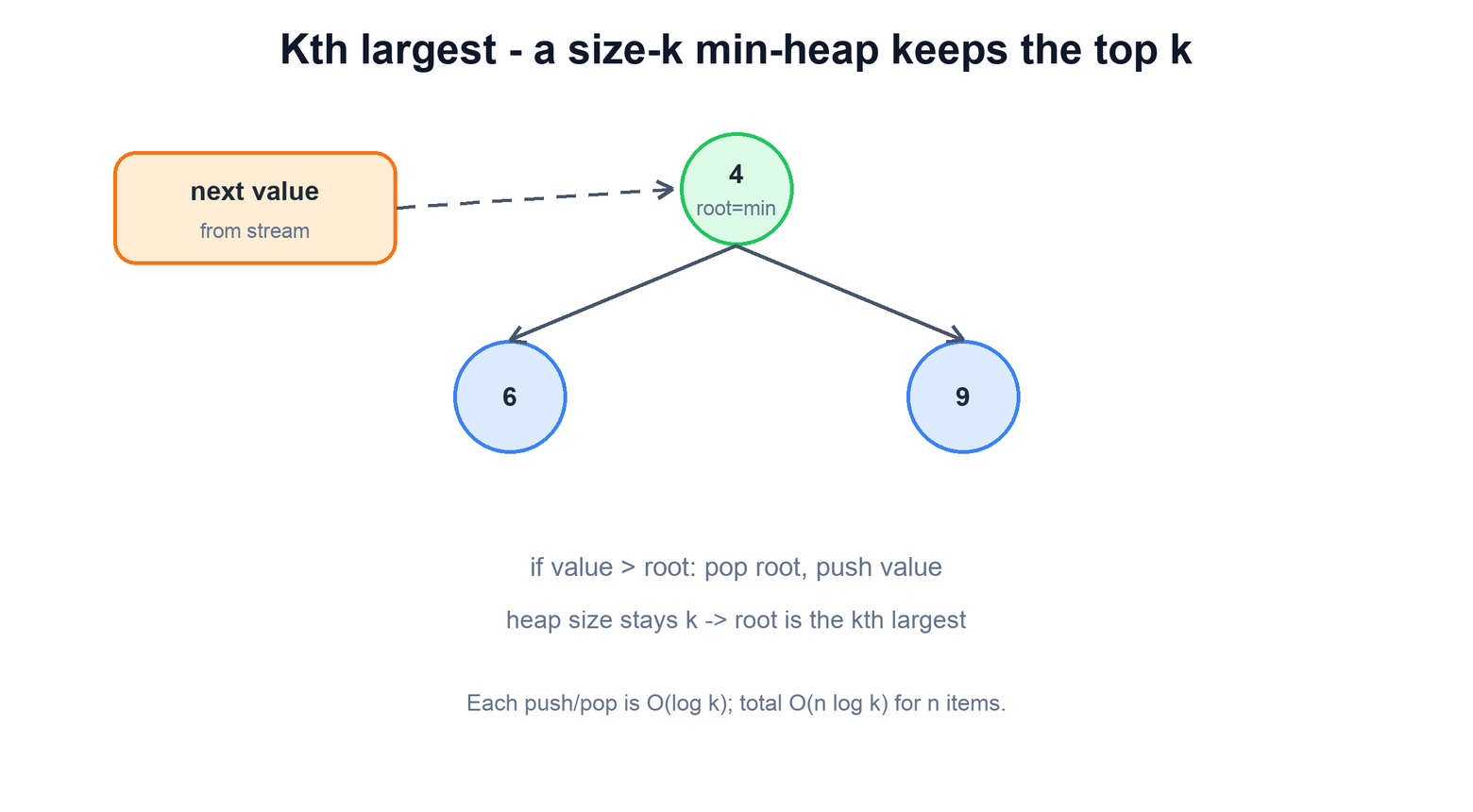

Keep a min-heap of size k; the root is the smallest of the k best seen, so any larger incoming value evicts it, leaving the kth largest at the root.
function kth_largest(stream, k):
heap = min_heap() # size capped at k
for value in stream:
if len(heap) < k:
heap.push(value)
else if value > heap.peek(): # bigger than current kth
heap.pop()
heap.push(value)
return heap.peek() # root = kth largest
Union-Find tracks a partition of elements into disjoint sets, supporting near-constant-time merge and same-set queries via path compression and union by rank.

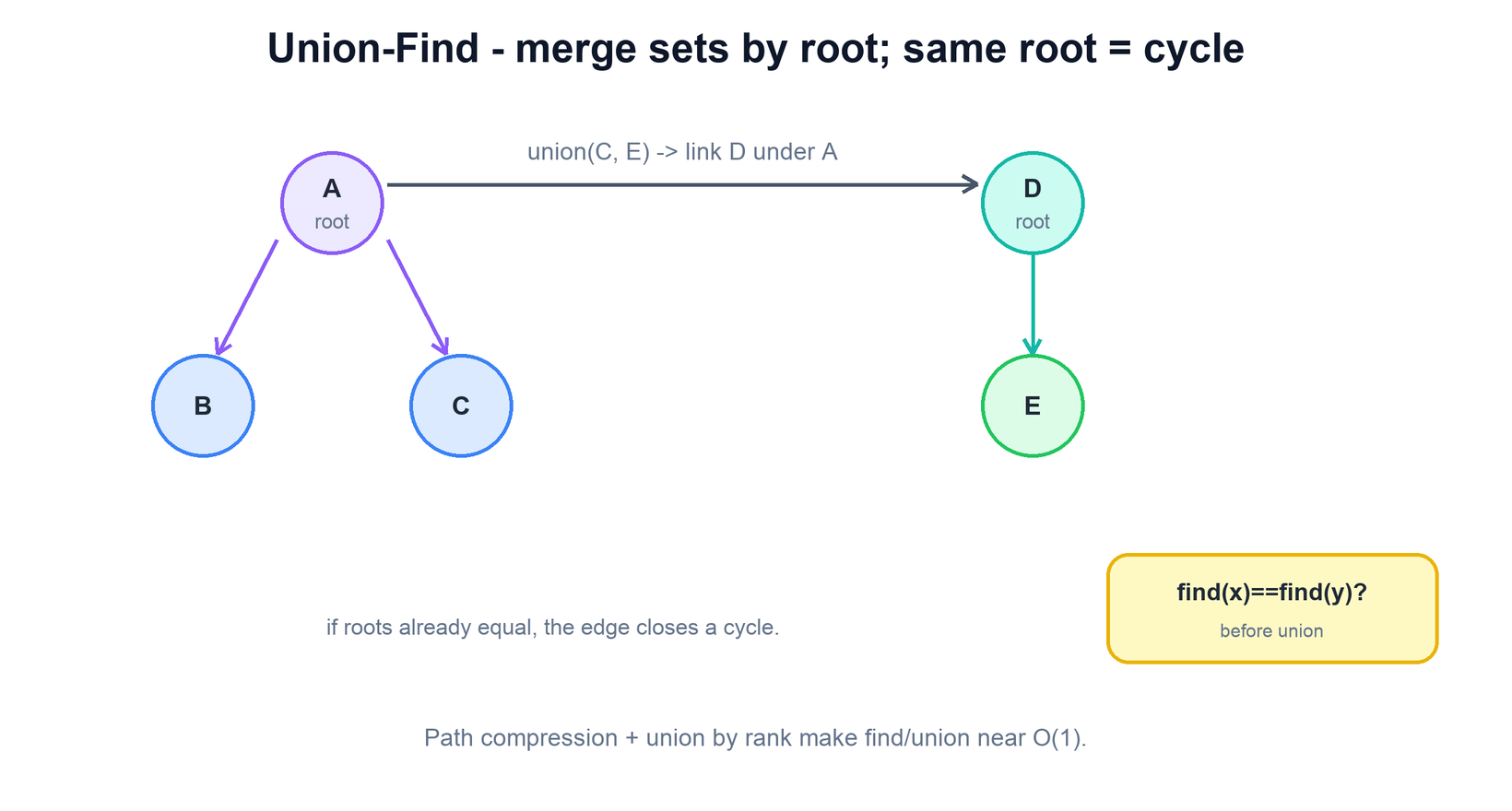

Each element points toward a root; two elements share a set when they share a root, and an edge whose endpoints already share a root closes a cycle.
function find(x):
while parent[x] != x:
parent[x] = parent[parent[x]] # path compression
x = parent[x]
return x
function union(x, y):
rx, ry = find(x), find(y)
if rx == ry: return false # already joined -> cycle
if rank[rx] < rank[ry]: swap(rx, ry)
parent[ry] = rx # attach smaller under larger
if rank[rx] == rank[ry]: rank[rx] += 1
return true
A topological sort orders the nodes of a directed acyclic graph so every edge points forward — the standard way to sequence tasks with dependencies.

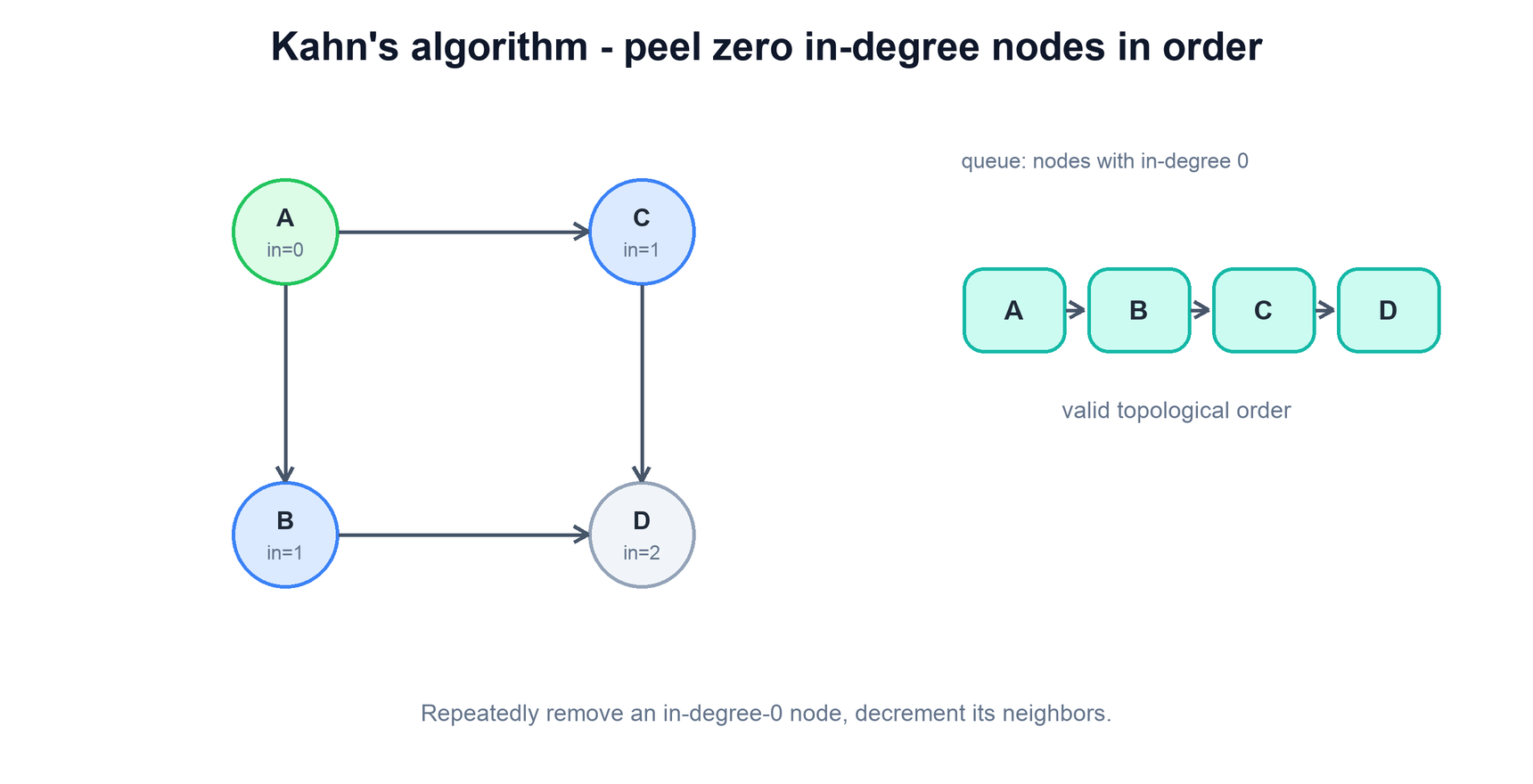

Repeatedly take a node with no remaining prerequisites (in-degree 0) and remove it, decrementing its neighbors; if any node is left, a cycle exists.
function topo_sort(nodes, edges):
compute in_degree[v] for all v
queue = all v with in_degree[v] == 0
order = []
while queue not empty:
u = queue.pop()
order.append(u)
for v in neighbors(u):
in_degree[v] -= 1 # prerequisite satisfied
if in_degree[v] == 0: queue.push(v)
if len(order) < len(nodes): return CYCLE # not a DAG
return order

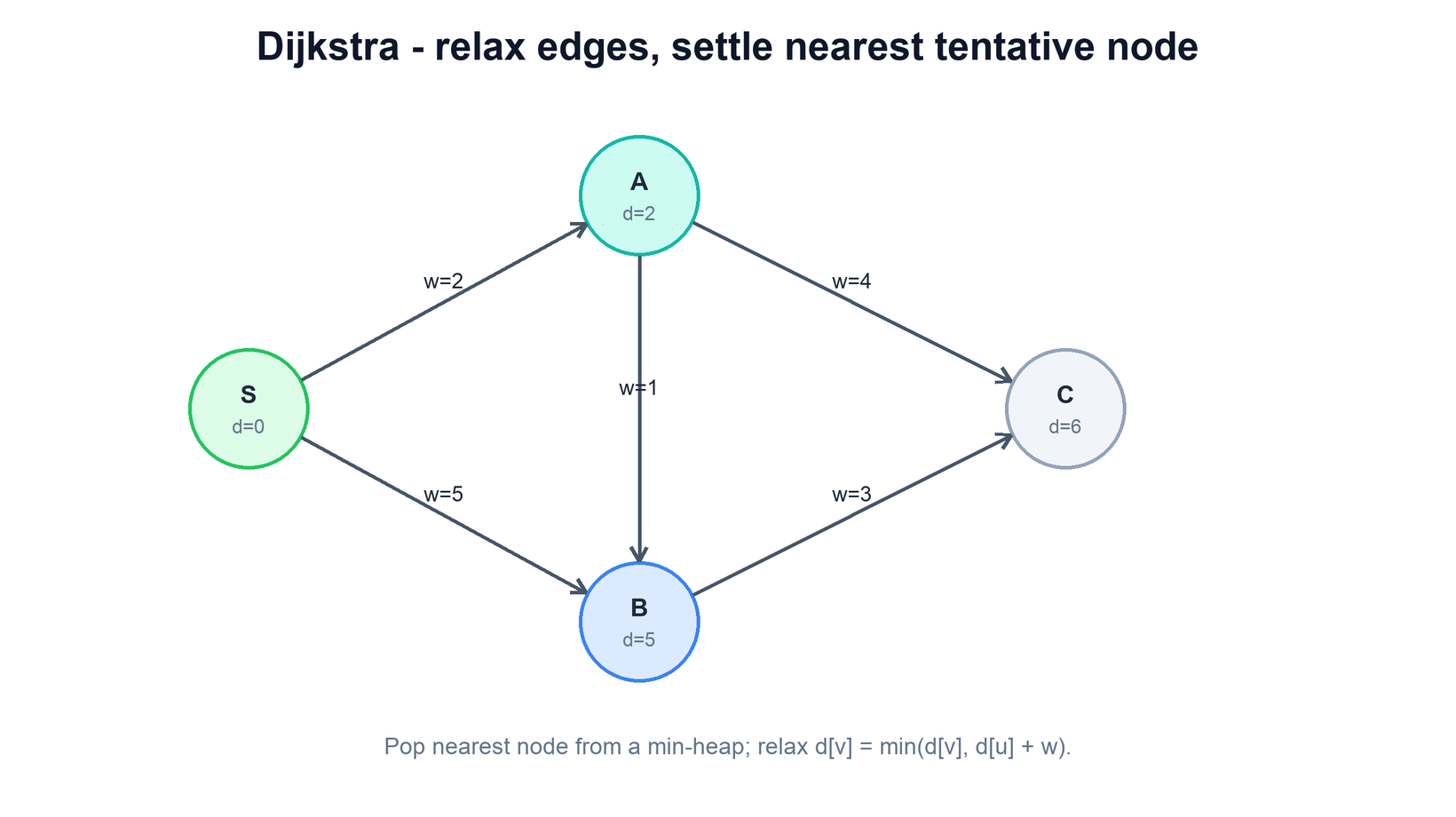

Dijkstra finds shortest paths from a source in a graph with non-negative edge weights by always settling the nearest unvisited node next.
Keep tentative distances in a min-heap; pop the closest node, mark it final, and relax each outgoing edge to shorten its neighbors’ distances.
function dijkstra(graph, source):
dist = map with default infinity
dist[source] = 0
heap = min_heap of (0, source)
while heap not empty:
d, u = heap.pop() # nearest tentative node
if d > dist[u]: continue # stale entry, skip
for (v, w) in graph[u]:
if dist[u] + w < dist[v]: # relax the edge
dist[v] = dist[u] + w
heap.push((dist[v], v))
return dist
Use this small example to connect the concept to a concrete decision.
| Step | Evidence, decision, and expected result |
|---|---|
| Specify the input | Require integer 1≤k≤len(values). Empty input, k=0, and oversized k need an explicit exception/alternative contract. |
| Initialize the first window | Compute sum(values[0:k]) and record it as best; this handles all-negative arrays correctly. |
| Slide one position | Subtract the leaving element and add the entering one. Invariant: running sum matches the current k elements; best covers all prior windows. |
| Check exit and cost | n−k slides finish; compare with a brute-force reference on small random arrays and invalid boundaries. Total time O(n), extra space O(1). |
No. Its decision rule needs a monotonic property, often nonnegative values. Negative values can invalidate 'shrink when sum too large'; choose a different algorithm/contract.
Download guide_labs.py. Python 3.10+, standard library only. In its directory, run:
python3 guide_labs.py algorithms
python3 guide_labs.py testRun algorithms for windows, binary search, BFS, and Dijkstra; run algorithm-patterns for sorting, dynamic programming, linked cycles, Union-Find, topological order, enumeration, heaps, and interval scheduling. All cases are finite learning models with stated preconditions.
The program tests its stated finite contracts. It is an educational model, not an implementation of the named production product or a proof of unmodeled distributed faults.
